1.springcloud微服务架构搭建 之 《springboot自动装配Redis》

2.springcloud微服务架构搭建 之 《springboot集成nacos注册中心》

ribbon工作原理自己网上百度，说的都很详细

目录

1.项目引入openfeign和ribbon配置

2.新建lilock-ribbon-spring-boot-starter

3.增加restTemplate配置类

4.配置Ribbon配置类

5.配置ribbon自动装配spring.factories

6.新建一个cms业务服务，开始测试

7.配置ribbon参数

8.新建测试类进行测试

 9.在user服务调用

1.项目引入openfeign和ribbon配置

openfeign集成了ribbon，需要单独给ribbon配置参数信息

org.springframework.cloudspring-cloud-starter-openfeign${spring.cloud.version}

org.springframework.cloudspring-cloud-starter-netflix-ribbon${spring.cloud.version}

org.apache.httpcomponentshttpclient${httpclient.version}

2.新建lilock-ribbon-spring-boot-starter

引入ribbon坐标

lilock-commonslilock.cn1.0-SNAPSHOT4.0.01.0-SNAPSHOTlilock-feign-spring-boot-starterorg.springframework.bootspring-boot-autoconfigureorg.springframework.bootspring-boot-configuration-processororg.springframework.cloudspring-cloud-starter-openfeignorg.springframework.cloudspring-cloud-starter-netflix-ribbonorg.apache.httpcomponentshttpclientorg.projectlomboklombok

3.增加restTemplate配置类

package lilock.cn.common.ribbon.properties;import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;@ConfigurationProperties(prefix = "lilock.rest-template")
@Data
public class RestTemplateProperties {/*** 最大链接数*/private int maxTotal = 300;/*** 同路由最大并发数*/private int maxPerRoute = 200;/*** 读取超时时间 ms*/private int readTimeout = 30000;/*** 链接超时时间 ms*/private int connectTimeout = 15000;/**** 最大重试次数*/private int maxAutoRetries = 0;/*** 是否支持重试*/private boolean enableRetry = false;
}

4.配置Ribbon配置类

package lilock.cn.common.ribbon.config;import com.netflix.loadbalancer.IRule;
import com.netflix.loadbalancer.RoundRobinRule;
import lilock.cn.common.ribbon.properties.RestTemplateProperties;
import org.apache.http.client.HttpClient;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.config.Registry;
import org.apache.http.config.RegistryBuilder;
import org.apache.http.conn.socket.ConnectionSocketFactory;
import org.apache.http.conn.socket.PlainConnectionSocketFactory;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.impl.client.DefaultHttpRequestRetryHandler;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Primary;
import org.springframework.http.client.ClientHttpRequestFactory;
import org.springframework.http.client.HttpComponentsClientHttpRequestFactory;
import org.springframework.web.client.RestTemplate;@EnableConfigurationProperties
public class RibbonConfig {@Autowiredprivate RestTemplateProperties restTemplateProperties;@Bean@LoadBalancedpublic RestTemplate restTemplate(ClientHttpRequestFactory factory){RestTemplate restTemplate = new RestTemplate();//设置resttemplate http工厂restTemplate.setRequestFactory(factory);return restTemplate;}/*** 配置默认负载均衡策略-轮训* @return*/@Bean@Primarypublic IRule ribbonRule(){IRule rule = new RoundRobinRule();return rule;}@Bean@Primarypublic ClientHttpRequestFactory httpRequestFactory(HttpClient httpclient){//设置httpclientreturn new HttpComponentsClientHttpRequestFactory(httpclient);}/*** 配置httpclient 参数* @return*/@Beanpublic HttpClient httpClient(){Registry registry = RegistryBuilder.create().register("http", PlainConnectionSocketFactory.getSocketFactory()).register("https", SSLConnectionSocketFactory.getSocketFactory()).build();PoolingHttpClientConnectionManager connectionManager = new PoolingHttpClientConnectionManager(registry);// 最大链接数connectionManager.setMaxTotal(restTemplateProperties.getMaxTotal());// 同路由并发数20connectionManager.setDefaultMaxPerRoute(restTemplateProperties.getMaxPerRoute());RequestConfig requestConfig = RequestConfig.custom()// 读超时.setSocketTimeout(restTemplateProperties.getReadTimeout())// 链接超时.setConnectTimeout(restTemplateProperties.getConnectTimeout())// 链接不够用的等待时间.setConnectionRequestTimeout(restTemplateProperties.getReadTimeout()).build();return HttpClients.custom().setDefaultRequestConfig(requestConfig).setConnectionManager(connectionManager).setRetryHandler(new DefaultHttpRequestRetryHandler(restTemplateProperties.getMaxAutoRetries(),restTemplateProperties.isEnableRetry())).build();}
}

5.配置ribbon自动装配spring.factories

org.springframework.boot.autoconfigure.EnableAutoConfiguration = \
lilock.cn.common.ribbon.properties.RestTemplateProperties,\
lilock.cn.common.ribbon.config.RibbonConfig

6.新建一个cms业务服务，开始测试

lilock-moduleslilock.cn1.0-SNAPSHOT4.0.01.0-SNAPSHOTlilock-service-cmsorg.springframework.bootspring-boot-starter-weborg.springframework.bootspring-boot-starter-testlilock.cnlilock-feign-spring-boot-starter${project.version}io.springfoxspringfox-swagger2io.springfoxspringfox-swagger-uicom.alibaba.cloudspring-cloud-starter-alibaba-nacos-discoveryorg.springframework.bootspring-boot-maven-plugin

7.配置ribbon参数

server.port 可以配置不同的端口，cms服务启动2次模拟负载，我这里端口分别配置的是8990,8991

lilock:rest-template:max-total: 300 #最大连接数max-per-route: 200 #路由最大数max-auto-retries: 0 #最大重试次数enable-retry: false #是否开启重试connect-timeout: 15000 #链接超时时间read-timeout: 30000 #请求超时时间
spring:cloud:nacos:discovery:server-addr: 127.0.0.1:8848register-enabled: truenamespace: devapplication:name: lilock-service-cms
server:port: 8990

8.新建测试类进行测试

package lilock.cn.cms.controller;import io.swagger.annotations.Api;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;@RestController
@RequestMapping("/api/cms")
@Api(value = "cms接口管理",tags = {"CMS接口管理"})
@Slf4j
public class CmsController {@Value("${server.port}")private Integer port;@Value("${spring.application.name}")private String service;@GetMapping("/hello")public String getHello(){return "["+ service +"]点前服务端口号是:["+ port +"]返回内容 HELLO" ;}
}

 9.在user服务调用

package lilock.cn.user.controller;import com.alibaba.fastjson.JSONObject;
import io.swagger.annotations.Api;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;@RestController
@RequestMapping(path = "/user")
@Api(value = "系统用户",tags = {"系统用户"})
@Slf4j
public class UserController {@Autowiredprivate RestTemplate restTemplate;@GetMapping("/testTemplate")public String testTemplate(){String value = restTemplate.getForObject("http://lilock-service-cms/api/cms/hello",String.class);log.info("获取当前请求结果:{}",value);return value;}
}

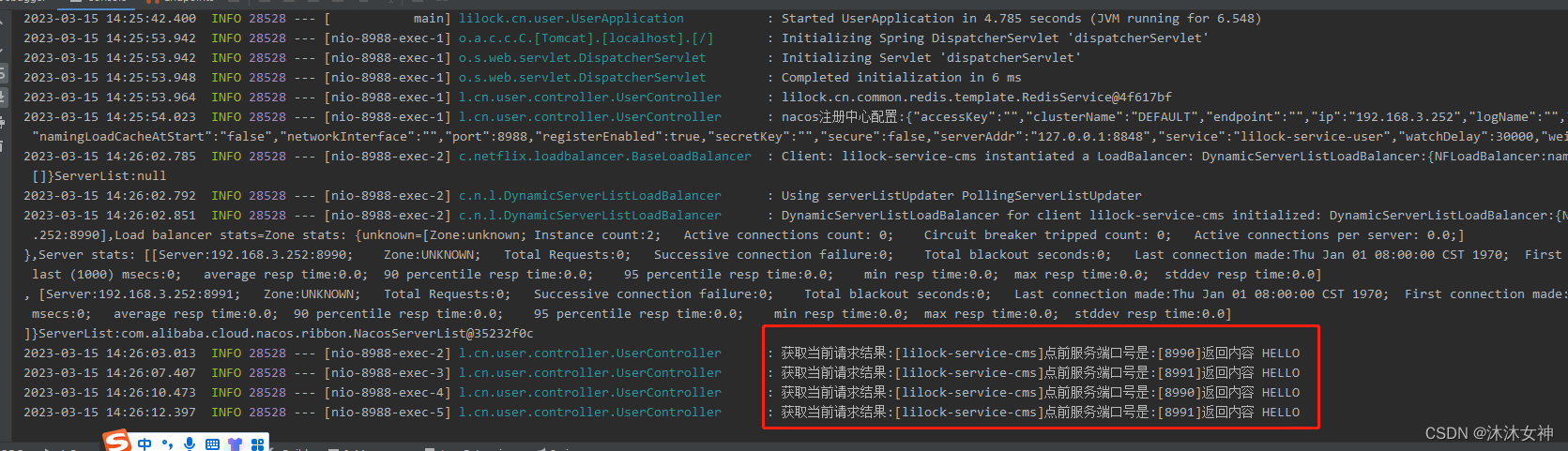

可以看到8990,8991 2个端口对应的服务轮训返回，说明配置的轮训策略生效
