OSPFv3实验

• • 拓扑图
  • 设备命令及解释
  • 测试效果

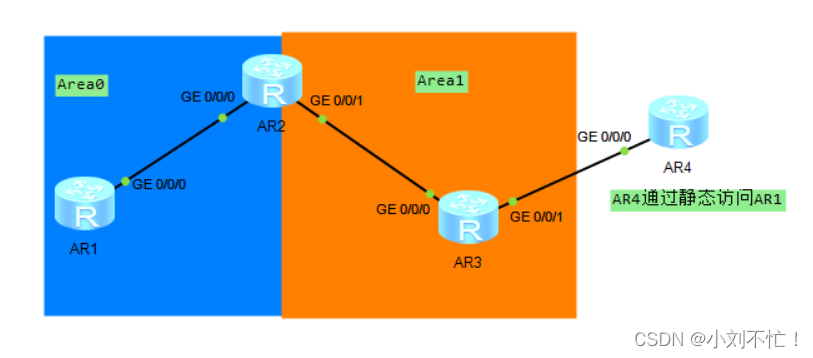

拓扑图

其中AR1和AR2属于区域0，AR2、3属于区域1，AR4使用静态路由的方式访问AR1的loopback接口。

设备命令及解释

AR1：
[Huawei]ipv6 //全局使能IPv6
[Huawei]int g 0/0/0
[Huawei-GigabitEthernet0/0/0] ipv6 enable //接口下使能IPv6
[Huawei-GigabitEthernet0/0/0] ipv6 address 2001:12::1/64 //配置IPv6地址
[Huawei-GigabitEthernet0/0/0] ospfv3 1 area 0.0.0.0 //开启OSPFv3进程
[Huawei]ipv6 route-static 2001:34:: 64 2001:12::2 //IPv6模式的静态路由
[Huawei]int LoopBack 0
[Huawei-LoopBack0] ipv6 enable
[Huawei-LoopBack0] ipv6 address 1::1/128
[Huawei-LoopBack0] ospfv3 1 area 0.0.0.0
[Huawei]ipv6 route-static 2001:34:: 64 2001:12::2

AR2：
[Huawei]ipv6
[Huawei]ospfv3 1
[Huawei-ospfv3-1]area 0
[Huawei-ospfv3-1]area 1
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0] ipv6 enable
[Huawei-GigabitEthernet0/0/0] ipv6 address 2001:12::2/64
[Huawei-GigabitEthernet0/0/0] ospfv3 1 area 0.0.0.0
[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1] ipv6 enable
[Huawei-GigabitEthernet0/0/1] ipv6 address 2001:23::2/64
[Huawei-GigabitEthernet0/0/1] ospfv3 1 area 0.0.0.1
[Huawei]int LoopBack 0
[Huawei-LoopBack0] ipv6 enable
[Huawei-LoopBack0] ipv6 address 2::2/128
[Huawei-LoopBack0] ospfv3 1 area 0.0.0.0
[Huawei]ipv6 route-static 2001:34:: 64 2001:23::3

AR3：
[Huawei]ipv6
[Huawei]ospfv3 1
[Huawei-ospfv3-1]area 1
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0] ipv6 enable
[Huawei-GigabitEthernet0/0/0] ipv6 address 2001:23::3/64
[Huawei-GigabitEthernet0/0/0] ospfv3 1 area 0.0.0.1
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1] ipv6 enable
[Huawei-GigabitEthernet0/0/1] ipv6 address 2001:34::3/64

AR4：
[Huawei]ipv6
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0] ipv6 enable
[Huawei-GigabitEthernet0/0/0] ipv6 address 2001:34::4/64
[Huawei]ipv6 route-static 2001:12:: 64 2001:34::3

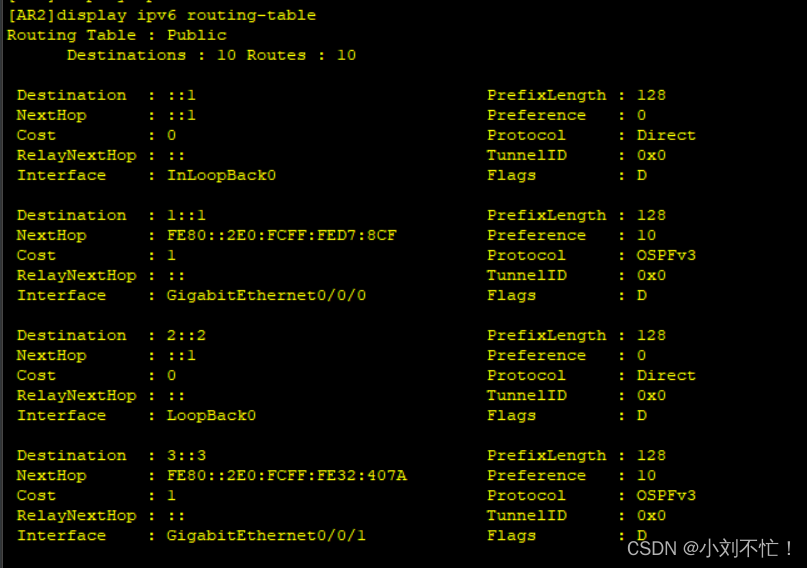

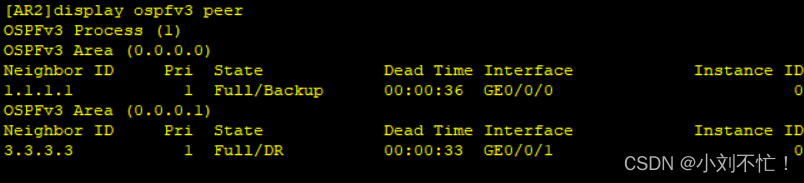

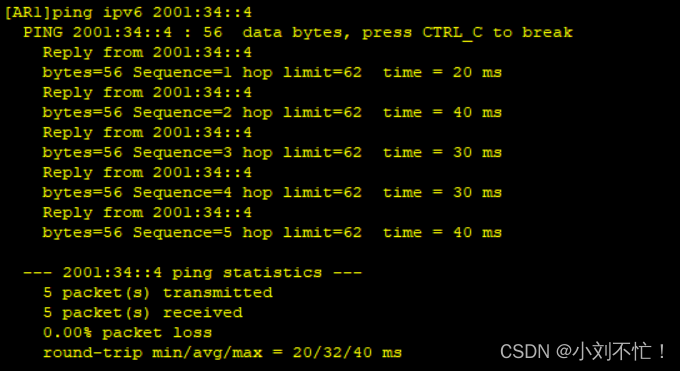

测试效果
