Tensorrt 实现 yolov5x + dcnv2

创始人

2025-05-31 20:33:38

在这里插入图片描述

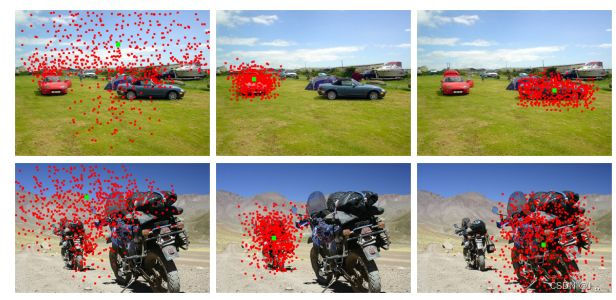

由于可变形卷积在采样时可以更贴近物体的形状和尺寸，更具有鲁棒性。所以想在自己数据集尝试一波，看看是否能涨点。

Paper: Deformable Convolutional Networks

在这里插入图片描述

python 增加 dcnv2 🚀

安装 dcnv2 https://github.com/jinfagang/DCNv2_latest
```
python3 setup.py build develop
```

common.py 增加 dcn op

# --------------------------DCNv2 start--------------------------
import _ext as _backend  class _DCNv2(Function):  @staticmethod  def forward(ctx, input, offset, mask, weight, bias, stride, padding, dilation, deformable_groups):  is_convert = input.dtype != torch.float32  if is_convert:  input = input.float()  offset = offset.float()  mask = mask.float()  weight = weight.float()  bias = bias.float()  ctx.stride = _pair(stride)  ctx.padding = _pair(padding)  ctx.dilation = _pair(dilation)  ctx.kernel_size = _pair(weight.shape[2:4])  ctx.deformable_groups = deformable_groups  output = _backend.dcn_v2_forward(  input,  weight,  bias,  offset,  mask,  ctx.kernel_size[0],  ctx.kernel_size[1],  ctx.stride[0],  ctx.stride[1],  ctx.padding[0],  ctx.padding[1],  ctx.dilation[0],  ctx.dilation[1],  ctx.deformable_groups,  )  ctx.save_for_backward(input, offset, mask, weight, bias)  if is_convert:  return output.half()  return output  @staticmethod  @once_differentiable    def backward(ctx, grad_output):  is_convert = grad_output.dtype != torch.float32  if is_convert:  grad_output = grad_output.float()  input, offset, mask, weight, bias = ctx.saved_tensors  grad_input, grad_offset, grad_mask, grad_weight, grad_bias = _backend.dcn_v2_backward(  input,  weight,  bias,  offset,  mask,  grad_output,  ctx.kernel_size[0],  ctx.kernel_size[1],  ctx.stride[0],  ctx.stride[1],  ctx.padding[0],  ctx.padding[1],  ctx.dilation[0],  ctx.dilation[1],  ctx.deformable_groups,  )  if is_convert:  grad_input = grad_input.half()  grad_offset = grad_offset.half()  grad_mask = grad_mask.half()  grad_weight = grad_weight.half()  grad_bias = grad_bias.half()  return grad_input, grad_offset, grad_mask, grad_weight, grad_bias, None, None, None, None  @staticmethod  def symbolic(g, input, offset, mask, weight, bias, stride, padding, dilation, deformable_groups):  from torch.nn.modules.utils import _pair  stride = _pair(stride)  padding = _pair(padding)  dilation = _pair(dilation)  # as of trt 7, the dcn operation will be translated again by modifying the onnx file  # so the exporting code is kept to resemble the forward()        return g.op(  "DCNv2_2",  input,  offset,  mask,  weight,  bias,  stride_i=stride,  padding_i=padding,  dilation_i=dilation,  deformable_groups_i=deformable_groups,  ) dcn_v2_conv = _DCNv2.apply   class DCNv2(nn.Module):  def __init__(  self,  in_channels,  out_channels,  kernel_size,  stride,  padding=1,  dilation=1,  deformable_groups=1,  ):  super(DCNv2, self).__init__()  self.in_channels = in_channels  self.out_channels = out_channels  self.kernel_size = _pair(kernel_size)  self.stride = _pair(stride)  self.padding = _pair(padding)  self.dilation = _pair(dilation)  self.deformable_groups = deformable_groups  self.weight = nn.Parameter(torch.Tensor(out_channels, in_channels, *self.kernel_size))  self.bias = nn.Parameter(torch.Tensor(out_channels))  self.reset_parameters()  def reset_parameters(self):  n = self.in_channels  for k in self.kernel_size:  n *= k  stdv = 1.0 / math.sqrt(n)  self.weight.data.uniform_(-stdv, stdv)  self.bias.data.zero_()  def forward(self, input, offset, mask):  assert (  2 * self.deformable_groups * self.kernel_size[0] * self.kernel_size[1]  == offset.shape[1]  )  assert self.deformable_groups * self.kernel_size[0] * self.kernel_size[1] == mask.shape[1]  return dcn_v2_conv(  input,  offset,  mask,  self.weight,  self.bias,  self.stride,  self.padding,  self.dilation,  self.deformable_groups,  )  class DCN(DCNv2):  def __init__(  self,  in_channels,  out_channels,  kernel_size,  stride,  padding=1,  dilation=1,  deformable_groups=1,  ):  super(DCN, self).__init__(  in_channels, out_channels, kernel_size, stride, padding, dilation, deformable_groups  )  channels_ = self.deformable_groups * 3 * self.kernel_size[0] * self.kernel_size[1]  self.conv_offset_mask = nn.Conv2d(  self.in_channels,  channels_,  kernel_size=self.kernel_size,  stride=self.stride,  padding=self.padding,  bias=True,  )  self.init_offset()  set_amp(self.training)  def init_offset(self):  self.conv_offset_mask.weight.data.zero_()  self.conv_offset_mask.bias.data.zero_()  def forward(self, input):  out = self.conv_offset_mask(input)  o1, o2, mask = torch.chunk(out, 3, dim=1)  offset = torch.cat((o1, o2), dim=1)  mask = torch.sigmoid(mask)  return dcn_v2_conv(  input,  offset,  mask,  self.weight,  self.bias,  self.stride,  self.padding,  self.dilation,  self.deformable_groups,  )  # ---------------------------DCNv2 end---------------------------

yolo.py 增加 dcnv2 , parse_model 函数

# 增加 DCNV2
if m in [Conv, GhostConv, Bottleneck, GhostBottleneck, SPP, SPPF, DWConv, MixConv2d, Focus, CrossConv,  BottleneckCSP, C3, C3TR, C3SPP, C3Ghost, C3HB, C3RFEM, MultiSEAM, SEAM, C3STR, MobileOneBlock, DCN]:

编辑训练 config ，增加 DCN 模块, 这里增加3层DCN, 如果增加4层的话，在我训练集上训练, 几个 epoch 后，梯度会消失，原因未知.

# Parameters
nc: 6  # number of classes
depth_multiple: 1.33  # model depth multiple
width_multiple: 1.25  # layer channel multiple
anchors:- [10,13, 16,30, 33,23]  # P3/8- [30,61, 62,45, 59,119]  # P4/16- [116,90, 156,198, 373,326]  # P5/32# YOLOv5 v6.0 backbone
backbone:# [from, number, module, args][[-1, 1, Conv, [64, 6, 2, 2]],  # 0-P1/2[-1, 1, DCN, [128, 3, 2]],  # 1-P2/4[-1, 3, C3, [128]],[-1, 1, DCN, [256, 3, 2]],  # 3-P3/8[-1, 6, C3, [256]],[-1, 1, DCN, [512, 3, 2]],  # 5-P4/16[-1, 9, C3, [512]],[-1, 1, Conv, [1024, 3, 2]],  # 7-P5/32[-1, 3, C3, [1024]],[-1, 1, SPPF, [1024, 5]],  # 9]# YOLOv5 v6.0 head
head:[[-1, 1, Conv, [512, 1, 1]],[-1, 1, nn.Upsample, [None, 2, 'nearest']],[[-1, 6], 1, Concat, [1]],  # cat backbone P4[-1, 3, C3, [512, False]],  # 13[-1, 1, Conv, [256, 1, 1]],[-1, 1, nn.Upsample, [None, 2, 'nearest']],[[-1, 4], 1, Concat, [1]],  # cat backbone P3[-1, 3, C3, [256, False]],  # 17 (P3/8-small)[-1, 1, Conv, [256, 3, 2]],[[-1, 14], 1, Concat, [1]],  # cat head P4[-1, 3, C3, [512, False]],  # 20 (P4/16-medium)[-1, 1, Conv, [512, 3, 2]],[[-1, 10], 1, Concat, [1]],  # cat head P5[-1, 3, C3, [1024, False]],  # 23 (P5/32-large)[[17, 20, 23], 1, Detect, [nc, anchors]],  # Detect(P3, P4, P5)]

expected scalar type Float but found Half

当训练时，会发生如上错误。大概意思就是输入input 不支持半精度, 只支持单精度的。参考了下这位兄弟的代码 https://github.com/CharlesShang/DCNv2/issues/43#issuecomment-648127833，稍微改动了一下。就是如果输入的数据不是单精度，会将数据先转换成单精度32位的，然后最后再把输出的数据转换成半精度16位的。

使用 tensorrt 编写 DCN plugins 🤖

dcnv2.h 参考: https://github.com/SsisyphusTao/Pytorch-TensorRT-Plugins dcnv2Plugin.h
dcnv2.cpp 参考: https://github.com/SsisyphusTao/Pytorch-TensorRT-Plugins dcnv2Plugin.cpp

这里改动了几个地方, 参考如下.

// enqueue 函数
// 屏蔽 mask
// const float* mask = offset_mask + deformable_group * 2 * kernel_size * kernel_size * height * width;
// mask 改成 offset_mask
modulated_deformable_im2col_cuda(stream, input, offset, offset_mask,
1, in_channels, height, width,
height_out, width_out, kernel_size, kernel_size,
padding, padding, stride, stride, dilation, dilation,
deformable_group, mColumn);// createPlugin 函数 感觉原来的参数传的太费劲
IPluginV2Ext* DCNv2PluginCreator::createPlugin(const char* name, const PluginFieldCollection* fc) TRT_NOEXCEPT
{assert(fc->nbFields == 3);std::vector weight;std::vector bias;int in_channel, out_channel, kernel, deformable_group, groups, padding, stride, dilation;const PluginField* fields = fc->fields;for (int i = 0; i < fc->nbFields; ++i){const char* attrName = fields[i].name;if (!strcmp(attrName, "netinfo")){int* p_netinfo = (int*)(fields[i].data);in_channel = p_netinfo[0];out_channel = p_netinfo[1];kernel = p_netinfo[2];deformable_group = p_netinfo[3];dilation = p_netinfo[4];stride = p_netinfo[5];padding = p_netinfo[6];groups = p_netinfo[7];}else if (!strcmp(attrName, "weight")){assert(fields[i].type == PluginFieldType::kFLOAT32);int size = fields[i].length;weight.reserve(size);const auto* w = static_cast(fields[i].data);for (int j = 0; j < size; j++){weight.push_back(*w);w++;}}else if (!strcmp(attrName, "bias")){assert(fields[i].type == PluginFieldType::kFLOAT32);int size = fields[i].length;bias.reserve(size);const auto* w = static_cast(fields[i].data);for (int j = 0; j < size; j++){bias.push_back(*w);w++;}}}Weights mWeight{ DataType::kFLOAT, weight.data(), (int64_t)weight.size() };Weights mBias{ DataType::kFLOAT, bias.data(), (int64_t)bias.size() };DCNv2Plugin* obj = new DCNv2Plugin(out_channel,kernel,deformable_group,dilation,padding,stride,&mWeight, &mBias);obj->setPluginNamespace(mNamespace.c_str());return obj;
}

dcn_v2_im2col_cuda.h 和 dcn_v2_im2col_cuda.cu 参考: https://github.com/jinfagang/DCNv2_latest/tree/master/src/cuda

使用 gen_wts.py 生成 wts.

import sys
import argparse
import os
import struct
import torch
from utils.torch_utils import select_device  def parse_args():  parser = argparse.ArgumentParser(description='Convert .pt file to .wts')  parser.add_argument('-w', '--weights', default="weights/test_dcn.pt",  help='Input weights (.pt) file path (required)')  parser.add_argument(  '-o', '--output', default='weights', help='Output (.wts) file path (optional)')  parser.add_argument(  '-t', '--type', type=str, default='detect', choices=['detect', 'cls'],  help='determines the model is detection/classification')  args = parser.parse_args()  if not os.path.isfile(args.weights):  raise SystemExit('Invalid input file')  if not args.output:  args.output = os.path.splitext(args.weights)[0] + '.wts'  elif os.path.isdir(args.output):  args.output = os.path.join(  args.output,  os.path.splitext(os.path.basename(args.weights))[0] + '.wts')  return args.weights, args.output, args.type  pt_file, wts_file, m_type = parse_args()  # Initialize
device = select_device('cpu')
# Load model
model = torch.load(pt_file, map_location=device)  # load to FP32
model = model['ema' if model.get('ema') else 'model'].float()  if m_type == "detect":  # update anchor_grid info  anchor_grid = model.model[-1].anchors * \  model.model[-1].stride[..., None, None]  # model.model[-1].anchor_grid = anchor_grid  delattr(model.model[-1], 'anchor_grid')  # model.model[-1] is detect layer  # The parameters are saved in the OrderDict through the "register_buffer" method, and then saved to the weight.    model.model[-1].register_buffer("anchor_grid", anchor_grid)  model.to(device).eval()  with open(wts_file, 'w') as f:  f.write('{}\n'.format(len(model.state_dict().keys())))  for k, v in model.state_dict().items():  vr = v.reshape(-1).cpu().numpy()  f.write('{} {} '.format(k, len(vr)))  for vv in vr:  f.write(' ')  f.write(struct.pack('>f', float(vv)).hex())  f.write('\n')

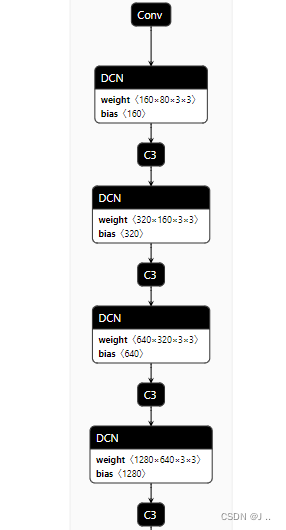

查看网络模型结构，可以看到只需将 conv 层改成 dcnv2层就行，其他的不用变. 参考 : https://github.com/wang-xinyu/tensorrtx/tree/master/yolov5

实现 DCN 层

nvinfer1::ILayer* convDcn(nvinfer1::INetworkDefinition* network, std::map& weightMap, nvinfer1::ITensor& input, std::string lname, int outch, int inChannel, int outChannel, int kernelSize = 3, int stride = 2, int padding = 1)
{IConvolutionLayer* conv_offset_mask = network->addConvolutionNd(input, outch, DimsHW{ kernelSize, kernelSize }, weightMap[lname + ".conv_offset_mask.weight"], weightMap[lname + ".conv_offset_mask.bias"]);conv_offset_mask->setPaddingNd(DimsHW{ padding, padding });conv_offset_mask->setStrideNd(DimsHW{ stride, stride });assert(conv_offset_mask);Dims conv_offset_mask_dim = conv_offset_mask->getOutput(0)->getDimensions();ISliceLayer* o1 = network->addSlice(*conv_offset_mask->getOutput(0),Dims3{ 0, 0, 0 }, Dims3{ conv_offset_mask_dim.d[0] / 3 , conv_offset_mask_dim.d[1], conv_offset_mask_dim.d[2] }, Dims3{ 1, 1, 1 });ISliceLayer* o2 = network->addSlice(*conv_offset_mask->getOutput(0),Dims3{ conv_offset_mask_dim.d[0] / 3, 0, 0 }, Dims3{ conv_offset_mask_dim.d[0] / 3 , conv_offset_mask_dim.d[1], conv_offset_mask_dim.d[2] }, Dims3{ 1, 1, 1 });ISliceLayer* mask = network->addSlice(*conv_offset_mask->getOutput(0),Dims3{ conv_offset_mask_dim.d[0] / 3 * 2, 0, 0 }, Dims3{ conv_offset_mask_dim.d[0] / 3 , conv_offset_mask_dim.d[1], conv_offset_mask_dim.d[2] }, Dims3{ 1, 1, 1 });ITensor* concatTensors[] = { o1->getOutput(0),o2->getOutput(0) };IConcatenationLayer* offset = network->addConcatenation(concatTensors, 2);assert(offset);auto sigmoid_conv_offset_mask = network->addActivation(*mask->getOutput(0), ActivationType::kSIGMOID);auto creator = getPluginRegistry()->getPluginCreator("DCNv2", "1");PluginField plugin_fields[3];plugin_fields[0].data = weightMap[lname + ".weight"].values;plugin_fields[0].length = weightMap[lname + ".weight"].count;plugin_fields[0].name = "weight";plugin_fields[0].type = PluginFieldType::kFLOAT32;plugin_fields[1].data = weightMap[lname + ".bias"].values;plugin_fields[1].length = weightMap[lname + ".bias"].count;plugin_fields[1].name = "bias";plugin_fields[1].type = PluginFieldType::kFLOAT32;int dilation = 1;int groups = 1;int deformable_group = 1;int netinfo[8] = { inChannel, outChannel, kernelSize, deformable_group, dilation, stride, padding, groups };plugin_fields[2].data = netinfo;plugin_fields[2].length = 8;plugin_fields[2].name = "netinfo";plugin_fields[2].type = PluginFieldType::kINT32;PluginFieldCollection plugin_data;plugin_data.nbFields = 3;plugin_data.fields = plugin_fields;IPluginV2* plugin_obj = creator->createPlugin("dcnlayer", &plugin_data);std::vector input_tensors;input_tensors.push_back(&input);input_tensors.push_back(offset->getOutput(0));input_tensors.push_back(sigmoid_conv_offset_mask->getOutput(0));auto dcn = network->addPluginV2(&input_tensors[0], input_tensors.size(), *plugin_obj);return dcn;
}

修改 yolov5 backbone

/* ------ yolov5 backbone------ */auto conv0 = convBlock(network, weightMap, *data, get_width(64, gw), 6, 2, 1, "model.0");assert(conv0);// 160 * 160 * 160auto dcnconv1 = convDcn(network, weightMap, *conv0->getOutput(0), "model.1", 27, get_width(64, gw), get_width(128, gw));assert(dcnconv1);auto bottleneck_csp2 = C3(network, weightMap, *dcnconv1->getOutput(0), get_width(128, gw), get_width(128, gw), get_depth(3, gd), true, 1, 0.5, "model.2");// 320 * 80 * 80auto dcnconv3 = convDcn(network, weightMap, *bottleneck_csp2->getOutput(0), "model.3", 27, get_width(128, gw), get_width(256, gw));assert(dcnconv3);auto bottleneck_csp4 = C3(network, weightMap, *dcnconv3->getOutput(0), get_width(256, gw), get_width(256, gw), get_depth(6, gd), true, 1, 0.5, "model.4");// 640 * 40 * 40auto dcnconv5 = convDcn(network, weightMap, *bottleneck_csp4->getOutput(0), "model.5", 27, get_width(256, gw), get_width(512, gw));assert(dcnconv5);auto bottleneck_csp6 = C3(network, weightMap, *dcnconv5->getOutput(0), get_width(512, gw), get_width(512, gw), get_depth(9, gd), true, 1, 0.5, "model.6");auto conv7 = convBlock(network, weightMap, *bottleneck_csp6->getOutput(0), get_width(1024, gw), 3, 2, 1, "model.7");auto bottleneck_csp8 = C3(network, weightMap, *conv7->getOutput(0), get_width(1024, gw), get_width(1024, gw), get_depth(3, gd), true, 1, 0.5, "model.8");auto spp9 = SPPF(network, weightMap, *bottleneck_csp8->getOutput(0), get_width(1024, gw), get_width(1024, gw), 5, "model.9");

增加模型这里我增加 x_dcn

bool parse_args(int argc, char** argv, std::string& wts, std::string& engine, bool& is_p6, float& gd, float& gw, std::string& img_dir) {if (argc < 4) return false;if (std::string(argv[1]) == "-s" && (argc == 5 || argc == 7)) {wts = std::string(argv[2]);engine = std::string(argv[3]);auto net = std::string(argv[4]);if (net[0] == 'n') {gd = 0.33;gw = 0.25;} else if (net[0] == 's') {gd = 0.33;gw = 0.50;} else if (net[0] == 'm') {gd = 0.67;gw = 0.75;} else if (net[0] == 'l') {gd = 1.0;gw = 1.0;} else if (net[0] == 'x') {gd = 1.33;gw = 1.25;} else if (net[0] == 'x_dcn') {gd = 1.33;gw = 1.25;} else if (net[0] == 'c' && argc == 7) {gd = atof(argv[5]);gw = atof(argv[6]);} else {return false;}if (net.size() == 2 && net[1] == '6') {is_p6 = true;}} else if (std::string(argv[1]) == "-d" && argc == 4) {engine = std::string(argv[2]);img_dir = std::string(argv[3]);} else {return false;}return true;
}

序列化模型和推理

 // serialize model to plan file./yolov5_det -s [.wts] [.engine] [n/s/m/l/x/x_dcn/n6/s6/m6/l6/x6 or c/c6 gd gw]  // deserialize and run inference, the images in [image folder] will be processed../yolov5_det -d [.engine] [image folder]

关于验证结论 👉

在自己数据集上验证，ap 提高了 0.5. 感觉效果不是太大。有的作者反馈提升了5个ap, 感觉没有那么邪乎，反正仁者见仁智者见智，可能针对我的数据集不是太适合，大家有啥好的想法欢迎讨论。

在这里插入图片描述

DEMO 🔊

参考 tensorrtx yolov5 , 实现 yolov5 + dcnv2

参考 👀

https://github.com/SsisyphusTao/Pytorch-TensorRT-Plugins
https://github.com/lesliejackson/TensorRT-DCNv2-Plugin
https://github.com/xingyizhou/CenterNet/tree/master/src/lib
https://github.com/jinfagang/DCNv2_latest
https://github.com/wang-xinyu/tensorrtx
https://zhuanlan.zhihu.com/p/361327540

END 🎭

以上记录了实现全部过程，有需要小伙伴可以参考下。
学习过程难免有差错，有不对的地方欢迎大佬指正.
最后码字不易，欢迎三连。

If I have seen further, it is by standing on the shoulders of giants.
