后面可参考下：vue系列（三）——手把手教你搭建一个vue3管理后台基础模板

以下代码项目gitee地址

文章目录

• • 1. 初始化前端项目
  • • 初始化项目
    • 添加加载效果
    • 配置 vite.config.js
  • 2. 使用路由
  • • 安装路由
    • 配置路由
    • 配置@别名和跳转
    • • 安装path
      • vite.config.js
      • jsconfig.json
    • main.js中使用路由
  • 3. 使用elment-plus
  • • 安装elment-plus
    • main.js中使用elment-plus
  • 4. 使用pinia
  • • 安装pinia
    • 配置pinia
    • • 创建store/index.js
      • 创建store/counter.js
    • main.js中引入
    • 组件中使用
  • 5. 使用axios
  • • 安装axios
    • 编写request.js
    • 编写api请求接口
    • 组件中使用axios
  • 6. 使用nprogress
  • • 安装nprogress
    • 封装nprogress.js
    • 路由中使用nprogress
  • 7. 引入iconfont
  • • 下载iconfont
    • main.js中引入
  • 8. 封装ELMessage
  • 9. 登录功能
  • • 配置登录的路由
    • login.vue
    • store/user.js
    • api/loginApi.js
  • 10.后台页面布局
  • • 配置登录成功后的路由
    • 拆分组件
    • • 创建layout/index.vue
      • 创建store/layout.js
      • 创建layout/components/Sider.vue
      • 创建layout/Main.vue
      • 创建layout/Breadcrumb.vue
      • 创建layout/TagsView组件
      • 创建layout/components/Demo.vue
  • 11. 菜单
  • • 搭建静态菜单路由
    • • 配置主页/用户/角色/菜单路由
      • 使用el-menu创建侧边栏菜单
      • 创建views/Home.vue
      • 创建views/404/NotFound.vue
    • 实现动态路由菜单
    • • 调整路由和菜单
      • • 调整路由
        • 调整菜单
      • 后台菜单和路由数据返回示例
      • • menu.json
        • router.json
        • 修改loginApi.js
        • 修改request.js
        • 修改router/index.js
        • 修改user.js
        • 创建store/menu.js
      • 修改菜单栏组件Sider.vue
      • 创建TreeMenu.vue递归组件
      • 解决地址栏刷新问题
      • • 修改router/index.js
        • 修改menu.js
  • 12.全屏功能
  • • 安装screenfull
    • 使用screenfull
  • 13. 面包屑
  • • 数据
    • 修改menus.js
    • 修改Breadcrumb.vue
  • 14. tagsView
  • • TagsView.vue
    • TagsView.js
  • 15. vue指令控制权限按钮显示
  • • 后台返回权限数据
    • 创建指令文件perms.js
    • loginApi.js中添加接口
    • 修改store/menu.js
    • User.vue中使用

1. 初始化前端项目

初始化项目

可参考：vite官网 https://vitejs.cn/guide/#scaffolding-your-first-vite-project

npm init vite@latest mushan-vue3-adminnpm installnpm run dev

添加加载效果

在index.html中的id为app中，写入

配置 vite.config.js

import { defineConfig } from 'vite'
import vue from '@vitejs/plugin-vue'
import path from 'path'// https://vitejs.dev/config/
export default defineConfig({plugins: [vue()],server: {hmr: true,port: 5174,},resolve: {alias: {'@':path.resolve(__dirname,'./src')}}
})

2. 使用路由

安装路由

npm i vue-router@4 -S

配置路由

import { createRouter,createWebHistory} from "vue-router";
import nprogress from "@/utils/nprogress";// 路由信息
const routes = [{path: '/',name: 'home',component: ()=>import('@/views/index.vue')},{path: "/login",name: "login",component:  () => import('@/views/login/index.vue'),}
]const router = createRouter({history: createWebHistory(),routes
});router.beforeEach((to,from,next)=>{nprogress.start()next()
})router.afterEach((to,from,next)=>{nprogress.done()
})// 导出路由
export default router;

配置@别名和跳转

安装path

npm i path

vite.config.js

import { defineConfig } from 'vite'
import vue from '@vitejs/plugin-vue'
import path from 'path'// https://vitejs.dev/config/
export default defineConfig({plugins: [vue()],resolve: {alias: {'@':path.resolve(__dirname,'./src')}}
})

jsconfig.json

与vite.config.js在同一级目录下

{"compilerOptions": {"baseUrl": "./","paths": {"@/*": ["src/*"],}},"exclude": ["node_modules","dist"],"include": ["src/**/*"]
}

main.js中使用路由

import { createApp } from 'vue'
import './style.css'
import App from './App.vue'import router from '@/router'const app = createApp(App)
app.mount('#app')
app.use(router)

3. 使用elment-plus

安装elment-plus

npm install element-plus --save

main.js中使用elment-plus

import { createApp } from 'vue'
import './style.css'
import App from './App.vue'import ElementPlus from 'element-plus'
import 'element-plus/dist/index.css'import router from '@/router'const app = createApp(App)
app.mount('#app')
app.use(router)
app.use(ElementPlus)

4. 使用pinia

可参考：Vue3中的pinia使用（收藏版）

安装pinia

npm install pinia --save

配置pinia

创建store/index.js

import { createPinia } from 'pinia'const pinia = createPinia()export default pinia

创建store/counter.js

import { defineStore } from 'pinia'export const useCounter =  defineStore('counter',{state: () => ({count:99}),getters: {},actions: {}
})

main.js中引入

import { createApp } from 'vue'
import './style.css'
import App from './App.vue'import ElementPlus from 'element-plus'
import 'element-plus/dist/index.css'import router from '@/router'
import pinia from '@/store'const app = createApp(App)app.use(router)
app.use(pinia)
app.use(ElementPlus)app.mount('#app')

组件中使用

5. 使用axios

可参考：Vue3使用axios的配置教程

安装axios

npm install axios --save

编写request.js

import axios from 'axios'
import Messager from './messager'; // 在下面封装了const instance = axios.create({baseURL: 'http://127.0.0.1:8080/api',timeout: 10000
})instance.interceptors.request.use((config)=>{return config;
})instance.interceptors.response.use(response=>{if(response.data.errno == 0) {return Promise.resolve(response.data.data)} else {if(response.data.errno == 501) {Messager.error('请重新登录')window.location.href = '/login'} else {Messager.error(response.data.errmsg)return Promise.reject(new Error(response.data.errmsg))}}
})export default instance

编写api请求接口

import request from '@/utils/request'export function getCaptchaImage()  {return request({url: 'captchaImage',})
}export function login(data)  {return request({method:'post',url: 'user/login',data})
}

组件中使用axios

6. 使用nprogress

安装nprogress

npm i nprogress -S

封装nprogress.js

import Nprogress from 'nprogress'
import 'nprogress/nprogress.css'const nprogress = Nprogress.configure({easing: 'ease', // 动画方式speed: 1000, // 递增进度条的速度showSpinner: false, // 是否显示加载icotrickleSpeed: 200, // 自动递增间隔minimum: 0.3, // 更改启动时使用的最小百分比parent: 'body', //指定进度条的父容器
})export default nprogress

路由中使用nprogress

import { createRouter,createWebHistory} from "vue-router";
import nprogress from "@/utils/nprogress";// 路由信息
const routes = [{path: '/',name: 'home',component: ()=>import('@/views/index.vue')},{path: "/login",name: "login",component:  () => import('@/views/login/index.vue'),}
]const router = createRouter({history: createWebHistory(),routes
});router.beforeEach((to,from,next)=>{nprogress.start()next()
})router.afterEach((to,from,next)=>{nprogress.done()
})// 导出路由
export default router;

7. 引入iconfont

下载iconfont

下载iconfont相关资源到本地，添加到assets/iconfont目录下

main.js中引入

import { createApp } from 'vue'
import './style.css'import '@/assets/iconfont/iconfont.css' // 引入iconfont的css文件import App from './App.vue'

8. 封装ELMessage

import { ElMessage } from "element-plus";
const Messager = {ok(msg){ElMessage.success(msg)},error(msg) {ElMessage.error(msg)}
}
export default Messager

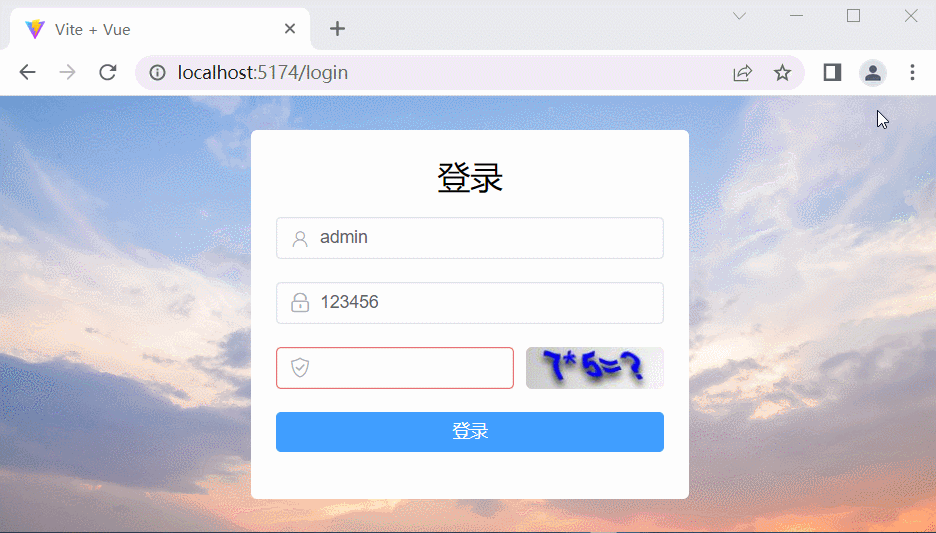

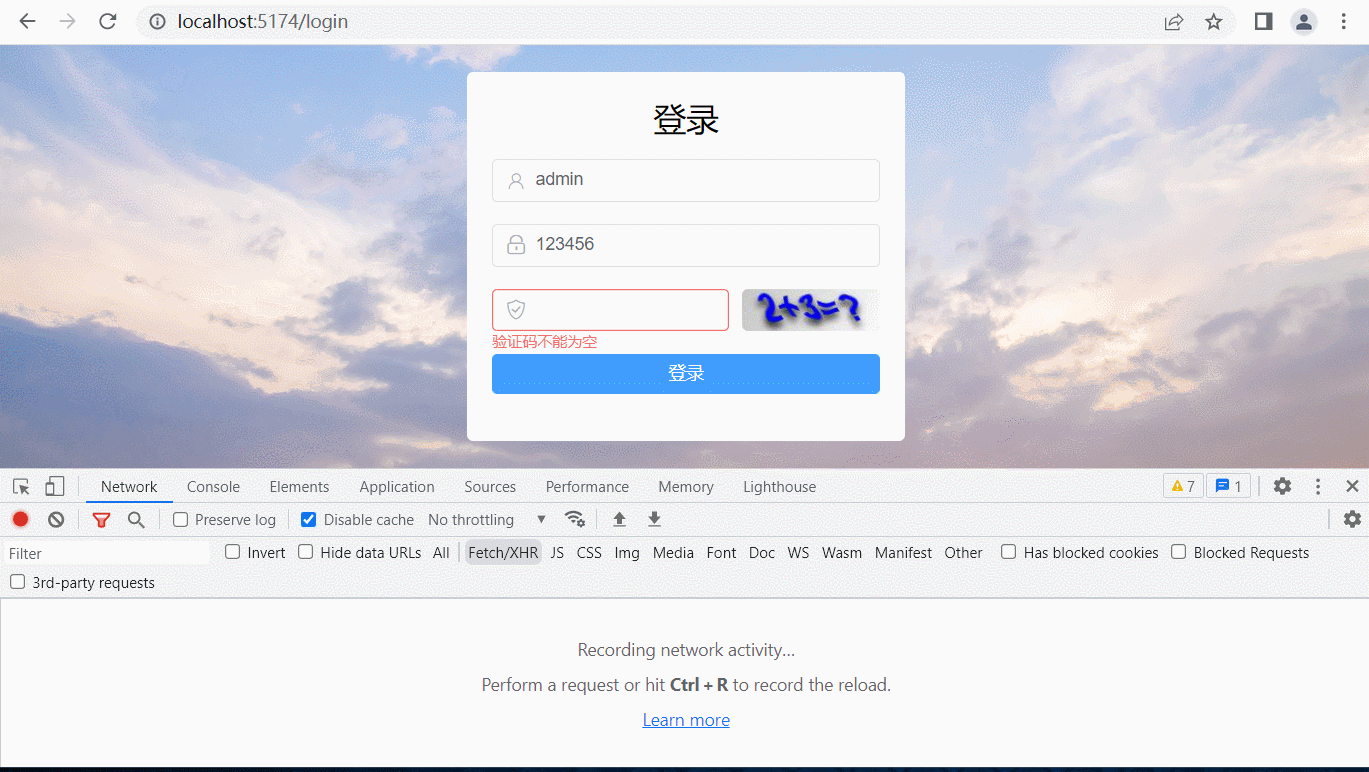

9. 登录功能

配置登录的路由

import { createRouter,createWebHistory} from "vue-router";
import nprogress from "@/utils/nprogress";// 路由信息
const routes = [{path: '/',name: 'home',component: ()=>import('@/views/index.vue')},{path: "/login",name: "login",component:  () => import('@/views/login/index.vue'),}
]const router = createRouter({history: createWebHistory(),routes
});router.beforeEach((to,from,next)=>{nprogress.start()next()
})router.afterEach((to,from,next)=>{nprogress.done()
})// 导出路由
export default router;

login.vue

store/user.js

将登录获取的token存入localStorage

import { defineStore } from 'pinia'import { login } from '@/api/loginApi'function retrieveLocalToken() {return localStorage.getItem('token') || ''
}export default defineStore('user',{state: () => {return {token: retrieveLocalToken() // 当刷新页面时, 这个会加载一次}},getters: {},actions: {doLogin(data) {return new Promise((resolve, reject) => {login(data).then(res=>{this.token = res // 同样先存入到pinia中localStorage.setItem('token', res)console.log('login',res);resolve(data)}).catch(err=>{reject(err)})})}}
})

api/loginApi.js

import request from '@/utils/request'export function getCaptchaImage()  {return request({url: 'captchaImage',})
}export function login(data)  {return request({method:'post',url: 'user/login',data})
}

10.后台页面布局

登录成功之后，会跳到主页，主页大概如下布局，可以先参考vue3 + elment-plus实现后台布局的静态页面布局，然后把它划分成不同的组件，不同组件的数据共享通过pinia这个store来管理。

配置登录成功后的路由

import { createRouter,createWebHistory} from "vue-router";
import nprogress from "@/utils/nprogress";// 路由信息
const routes = [{path: "/login",name: "login",component:  () => import('@/views/login/index.vue'),},{path: '/',name: 'home',component: ()=>import('@/layout/index.vue')},
]const router = createRouter({history: createWebHistory(),routes
});router.beforeEach((to,from,next)=>{nprogress.start()next()
})router.afterEach((to,from,next)=>{nprogress.done()
})// 导出路由
export default router;

拆分组件

创建layout/index.vue

Layout组件引入Sider和Main组件

创建store/layout.js

将组件的共享数据存入pinia

import { defineStore } from 'pinia'export default defineStore('layout', {state: ()=> {return {isExpand: true, // 侧边栏是否展开}},getters: {},actions: {// 切换侧边栏toggleSider() {console.log('切换侧边栏', this.isExpand);this.isExpand = !this.isExpand}}
})

创建layout/components/Sider.vue

isExpand是存放在pinia中的数据

创建layout/Main.vue

创建layout/Breadcrumb.vue

创建layout/TagsView组件

创建layout/components/Demo.vue

11. 菜单

搭建静态菜单路由

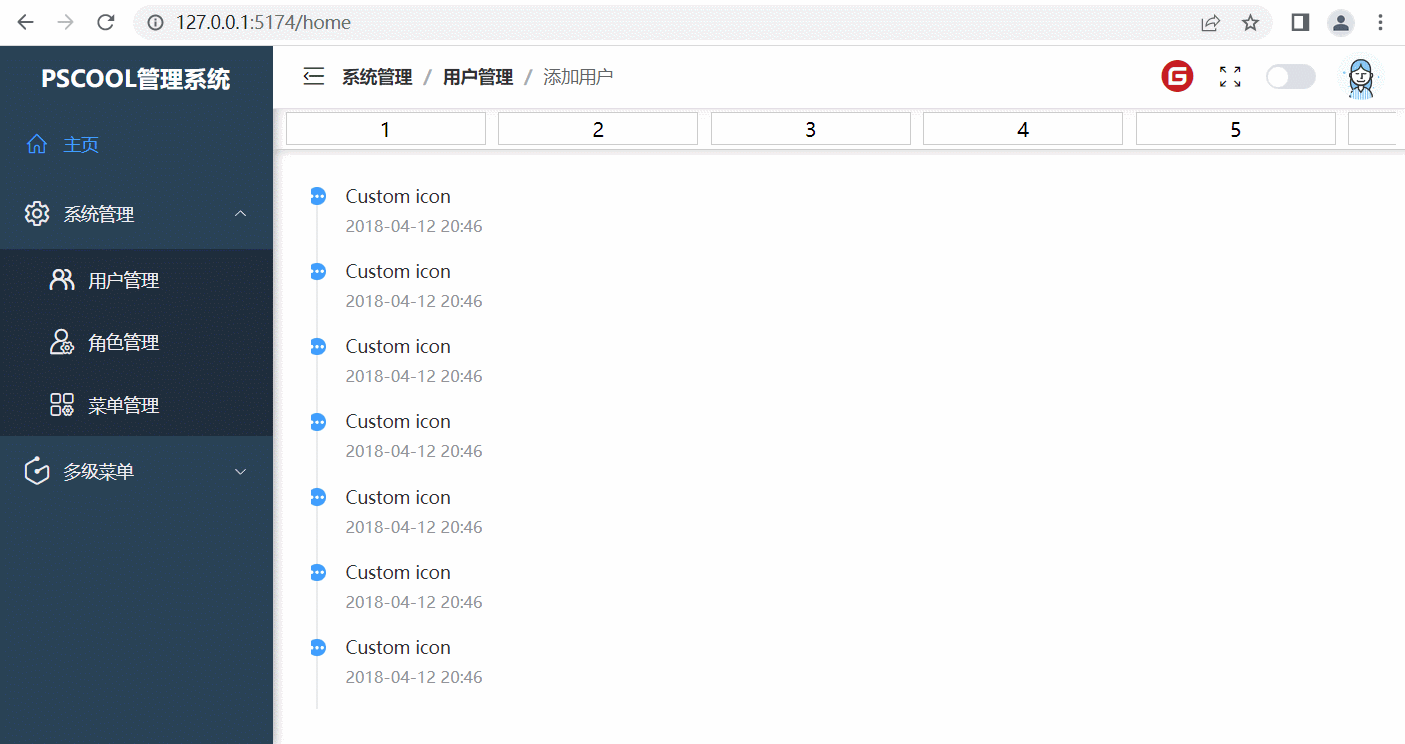

这一步，我们将获得如下的效果

配置主页/用户/角色/菜单路由

import { createRouter,createWebHistory} from "vue-router";
import nprogress from "@/utils/nprogress";// 路由信息
const routes = [{path: "/login",name: "login",component:  () => import('@/views/login/index.vue'),},{path: '/',name: 'layout',redirect:'/home',component: ()=>import('@/layout/index.vue'),children: [{path: 'home',name: 'home',component: ()=>import('@/views/Home.vue'),},{path: 'user',name: 'user',component: ()=>import('@/views/sys/user.vue'),},{path: 'role',name: 'role',component: ()=>import('@/views/sys/role.vue'),},{path: 'menu',name: 'menu',component: ()=>import('@/views/sys/menu.vue'),}]},// 匹配404页面{path:'/:pathMatch(.*)*',name: 'notFound',component: ()=>import('@/views/404/NotFound.vue')},
]const router = createRouter({history: createWebHistory(),routes
});router.beforeEach((to,from,next)=>{nprogress.start()next()
})router.afterEach((to,from,next)=>{nprogress.done()
})// 导出路由
export default router;

使用el-menu创建侧边栏菜单

1. el-menu就是一个ul，而el-subm-menu和el-menu-item都是一个li，其中el-sub-menu这个li中里面会嵌套一个div和一个ul>li，里面的这个div（使用title插槽）会显示出来作为菜单，里面的ul>li会作为收缩菜单
2. 当收缩的时候，会给el-menu生成的ul（也就是最外面的ul）加上一个el-menu–collapse的类名，它会把菜单中span的文字给隐藏掉，这样就只会显示图标了

创建views/Home.vue

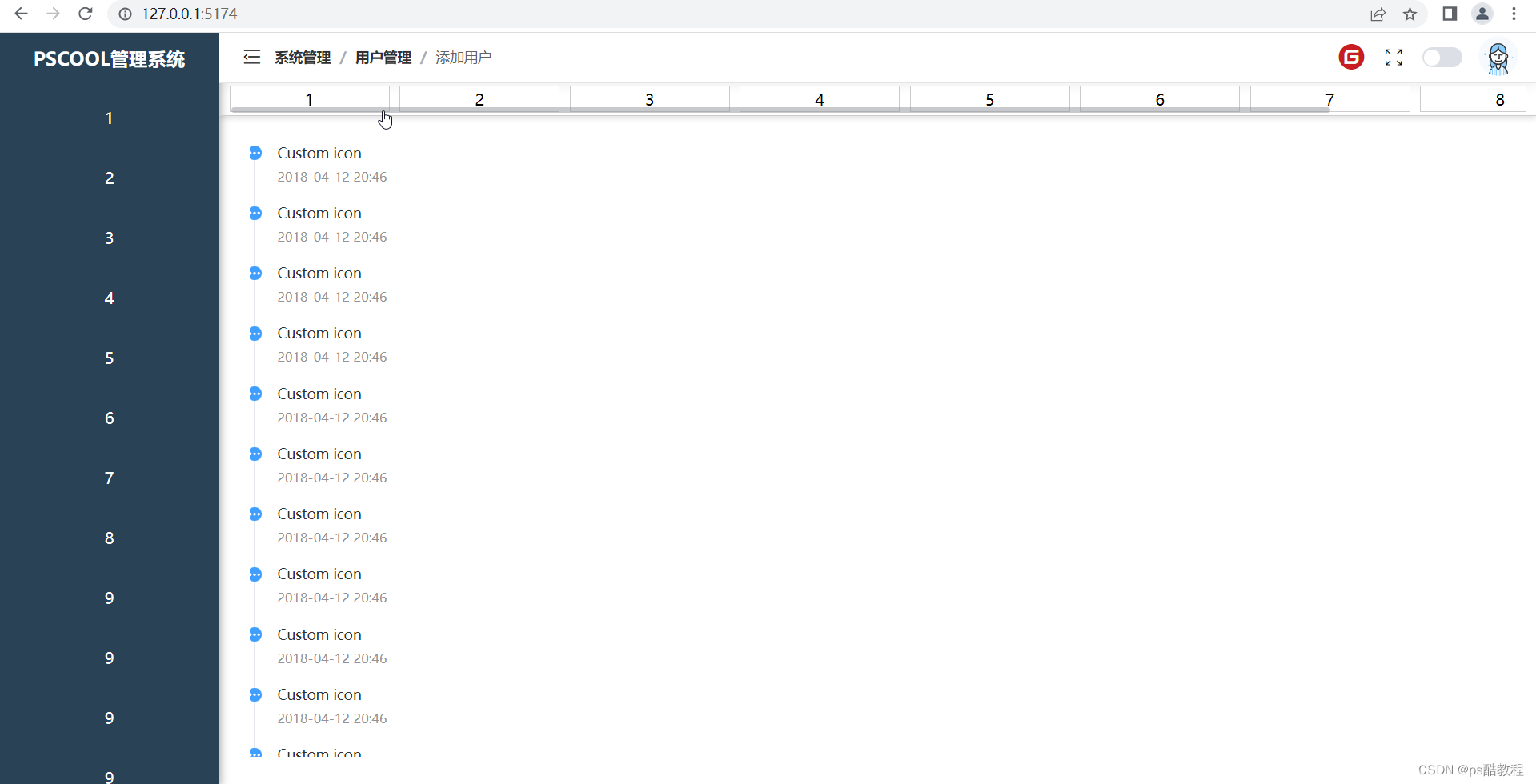

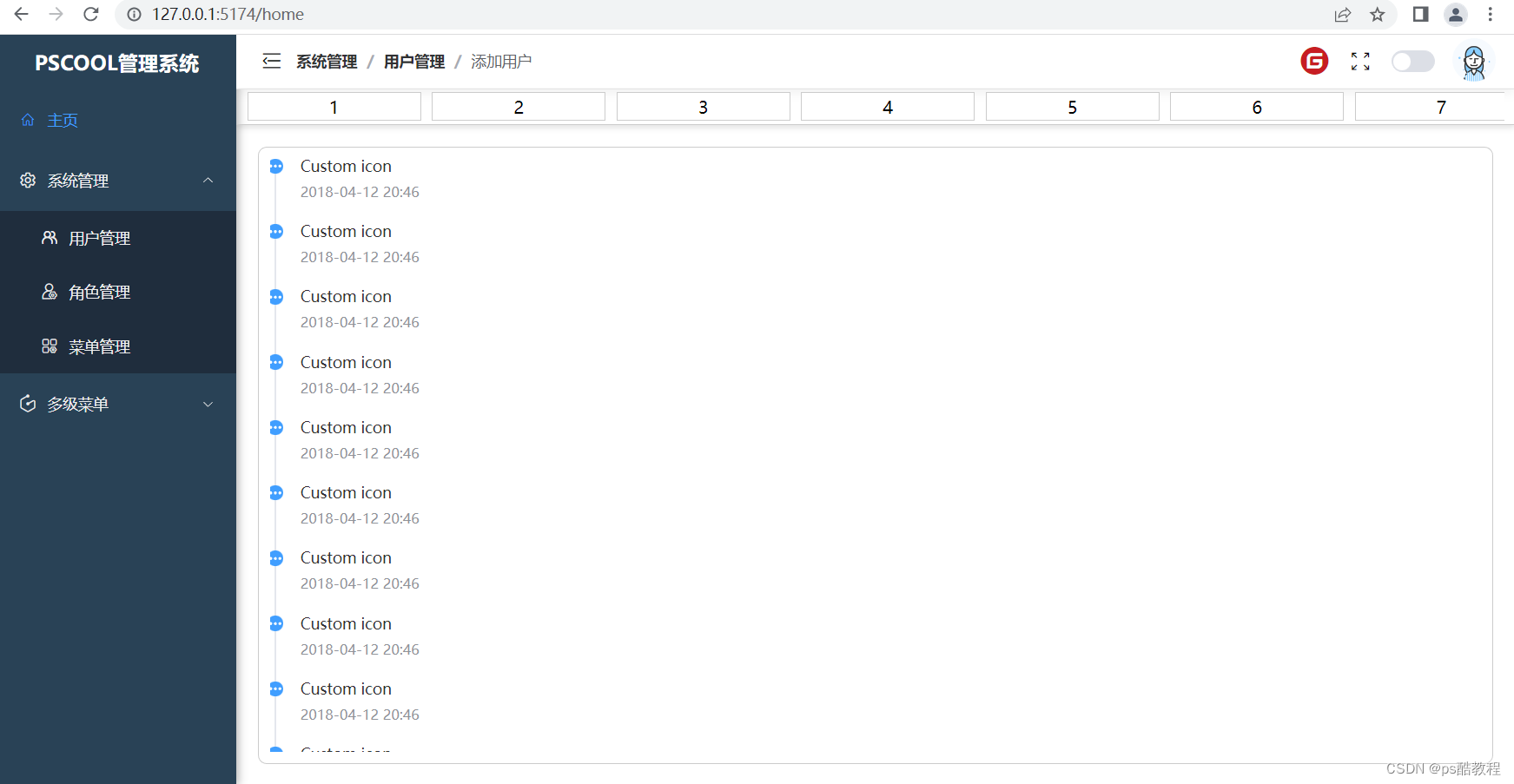

Home.vue可作为其它组件放入到Main.vue组件的main-body中的路由出口的模板，这样就不会让右边整体出现垂直滚动条（如下图），其它组件可以自定义布局方式，

创建views/404/NotFound.vue

这里就展示简单的返回下

实现动态路由菜单

不同用户登录进来，需要根据当前用户拥有的菜单显示在侧边栏，并且动态添加路由到router中。也就是说，用户一登陆完成，我们就应该请求后台去拿到用户拥有的所有菜单，组装侧边栏菜单，并且要动态的添加路由。

调整路由和菜单

我们需要做如下的事情，但是在做下面的事情之前，我们先调整一下我们的菜单，确保这样是可用的，然后再接入后台数据。

1. 需要获取左侧菜单栏的数据，然后递归遍历出来
2. 将路由添加到router里面

调整路由

• 我们注意到，vue里面的路由，如果是以/直接开头，它就会忽略父路由的路径，而直接去匹配，而如果不是以/开头，则会拼接上父路径去匹配，为了方便，就全部以/开头。
• 我们把所有的路由都作为layout的子路由，所以后面我们就直接添加到layout的路由下面就行了

import { createRouter,createWebHistory} from "vue-router";
import nprogress from "@/utils/nprogress";// 路由信息
const routes = [{path: "/login",name: "login",component:  () => import('@/views/login/index.vue'),},{path: '/',name: 'layout',component: ()=>import('@/layout/index.vue'),children: [{path: '/home', // 最好以/开头, 如果不以/开头，那么路由到这个组件就需要拼接上父路径name: 'home',component: ()=>import('@/views/Home.vue'),},{path: '/sys/user',name: 'user',component: ()=>import('@/views/sys/user.vue'),},{path: '/sys/role',name: 'role',component: ()=>import('@/views/sys/role.vue'),},{path: '/sys/menu',name: 'menu',component: ()=>import('@/views/sys/menu.vue'),},{path: '/test/test_1',name: 'test_1',component: ()=>import('@/views/test/test_1.vue'),},{path: '/test/test2/test_2_1',name: 'test_2_1',component: ()=>import('@/views/test/test2/test_2_1.vue'),},{path: '/test/test2/test_2_2',name: 'test_2_2',component: ()=>import('@/views/test/test2/test_2_2.vue'),},]},{path:'/:pathMatch(.*)*',name: 'notFound',component: ()=>import('@/views/404/NotFound.vue')},
]const router = createRouter({history: createWebHistory(),routes
});router.beforeEach((to,from,next)=>{nprogress.start()next()
})router.afterEach((to,from,next)=>{nprogress.done()
})// 导出路由
export default router;

调整菜单

这里我们只需要对着路由写index的路径即可。还有注意的是，如果用户是直接在地址栏输入的路径而跳转的话，我们也需要让对应的菜单高亮，我们监听路由即可。

后台菜单和路由数据返回示例

menu.json

{"errno": 0,"errmsg": "成功","data": [{"id": 1,"parentId": 0,"title":"主页","icon":"iconfont icon-home-line","url":"/home","menuType": "C","component":"@/views/Home.vue"},{"id": 2,"parentId": 0,"title":"系统设置","icon":"iconfont icon-shezhi","url":"/sys","menuType": "M","component":"","children": [{"id": 3,"parentId": 2,"title":"用户管理","icon":"iconfont icon-yonghuguanli","url":"/sys/user","menuType": "C","component":"@/views/sys/user.vue"},{"id": 4,"parentId": 2,"title":"角色管理","icon":"iconfont icon-jiaoseguanli","url":"/sys/role","menuType":"C","component":"@/views/sys/role.vue"},{"id": 5,"parentId": 2,"title":"菜单管理","icon":"iconfont icon-icon_caidanguanli","url":"/sys/menu","menuType":"C","component":"@/views/sys/menu.vue"}]},{"id": 6,"parentId": 0,"title":"多级菜单","icon":"iconfont icon-graphcool","url":"/test","component":"","menuType":"M","children": [{"id": 7,"parentId": 6,"title":"test_1","icon":"iconfont icon-graphcool","url":"/test/test_1","menuType":"C","component":"@/views/test/test_1.vue"},{"id": 8,"parentId": 2,"title":"test_2","icon":"iconfont icon-graphcool","url":"/test/test_2","menuType":"M","component":"","children":[{"id": 9,"parentId": 8,"title":"test_2_1","icon":"iconfont icon-graphcool","menuType":"C","url":"/test/test_2/test_2_1","component":"@/views/test/test_2_1.vue"},{"id": 10,"parentId": 8,"title":"test_2_2","icon":"iconfont icon-graphcool","menuType":"C","url":"/test/test_2/test_2_2","component":"@/views/test/test_2_2.vue"}]}]}]
}

router.json

{"errno": 0,"errmsg": "成功","data": [{"path": "/home","name": "home","component": "@/views/Home.vue"},{"path": "/sys/user","name": "user","component": "@/views/sys/user.vue"},{"path": "/sys/role","name": "role","component": "@/views/sys/role.vue"},{"path": "/sys/menu","name": "menu","component": "@/views/sys/menu.vue"},{"path": "/test/test_1","name": "test_1","component": "@/views/test/test_1.vue"},{"path": "/test/test_2/test_2_1","name": "test_2_1","component": "@/views/test/test2/test_2_1.vue"},{"path": "/test/test_2/test_2_2","name": "test_2_2","component": "@/views/test/test2/test_2_2.vue"}]
}

修改loginApi.js

import request from '@/utils/request'export function getCaptchaImage()  {return request({url: 'captchaImage',})
}export function login(data)  {return request({method:'post',url: 'user/login',data})
}export function getMenus()  { // 获取菜单return request({method:'get',url: 'test/getMenus'})
}export function getRoutes()  { // 获取路由return request({method:'get',url: 'test/getRoutes'})
}

修改request.js

因为需要添加请求头，才能访问获取菜单路由接口

import axios from 'axios'
import Messager from './messager';
import pinia from '@/store'
import useUser from '@/store/user'const instance = axios.create({baseURL: 'http://127.0.0.1:8080/api',timeout: 10000
})instance.interceptors.request.use((config)=>{// debuggerlet userStore = useUser()if(userStore.token) {console.log('userStore.token',userStore.token);config.headers['Authorization'] = userStore.token}return config;
})instance.interceptors.response.use(response=>{if(response.data.errno == 0) {return Promise.resolve(response.data.data)} else {if(response.data.errno == 501) {Messager.error('请重新登录')window.location.href = '/login'} else {Messager.error(response.data.errmsg)return Promise.reject(new Error(response.data.errmsg))}}
})export default instance

修改router/index.js

将原本配置的静态路由删掉，这部分路由由后端返回，并添加前置守卫逻辑

import { createRouter,createWebHistory} from "vue-router";
import nprogress from "@/utils/nprogress";
import Messager from '@/utils/messager';import useMenu from '@/store/menu'import pinia from '@/store'
import useUser from '@/store/user'
const userStore = useUser(pinia) // 此处不能像在组件里使用userStore一样直接useUser()调用，而是要先引入pinia，再传入。参考： https://blog.csdn.net/qq_21473443/article/details/126405859
console.log('router->userStore',userStore);const menuStore = useMenu(pinia)// 路由信息
const routes = [{path: "/login",name: "login",component:  () => import('@/views/login/index.vue'),},{path: '/',name: 'layout',component: ()=>import('@/layout/index.vue'),children: []},{path:'/:pathMatch(.*)*',name: 'notFound',component: ()=>import('@/views/404/NotFound.vue')},
]const router = createRouter({history: createWebHistory(),routes
});router.beforeEach((to,from,next)=>{nprogress.start()// debuggerlet token = userStore.tokenif(!token) {if(to.path == '/login') {next()} else {next('/login')}} else {if(!menuStore.routesMenusLoaded) {menuStore.loadRoutesMenus().then(res=>{next()}).catch(err=>{// 加载出错，跳回到登录页去userStore.clearUserInfo()next('/login')})} else {if(to.path == '/login') {Messager.warn('你已登录!')next('/home')} else {next()}}}})router.afterEach((to,from,next)=>{nprogress.done()
})// 导出路由
export default router;

修改user.js

import { defineStore } from 'pinia'import { login } from '@/api/loginApi'function retrieveLocalToken() {console.log('read token'); return localStorage.getItem('token') || ''
}
function clearLocalToken() {return localStorage.clear('token')
}export default defineStore('user',{state: () => {return {token: retrieveLocalToken() // 当刷新页面时, 这个会加载一次}},getters: {},actions: {doLogin(data) {return new Promise((resolve, reject) => {login(data).then(res=>{this.token = res // 同样先存入到pinia中localStorage.setItem('token', res)resolve(data)}).catch(err=>{reject(err)})})},clearUserInfo() {this.token = nullclearLocalToken()}}
})

创建store/menu.js

创建menu.js用来存储后台返回的数据

import { defineStore } from 'pinia'
import {getMenus,getRoutes} from '@/api/loginApi'
import router from '@/router'export default defineStore('menu', {state: ()=> {return {routesMenusLoaded: false, // 路由菜单是否已加载menus: [], // 菜单routes: [] // 路由}},getters: {},actions: {loadRoutesMenus() {return new Promise(async (resolve,reject)=>{try {let menus = await getMenus()let routes = await getRoutes()// 保存路由this.routes = routes// 保存菜单this.menus = menus// 动态加载路由routes.forEach(route=>{router.addRoute('layout', {path: route.path,name: route.name,component: ()=>import(route.component.replace('@',"../")) // 好像直接以@开头,会报错，所以这干脆替换成相对路径吧})})console.log(router.getRoutes(),'finished');resolve()} catch (err) {reject(err)}})}}
})

修改菜单栏组件Sider.vue

创建TreeMenu.vue递归组件

解决地址栏刷新问题

上面犯了一个错误，我把404路由作为静态路由，直接给放到了router里面了，这样404的路由就排在了前面，它不是精确匹配，导致我刷新页面的时候，直接就跳404页面了，所以把404的路由改到获取完后端的全部路由数据之后

修改router/index.js

import { createRouter,createWebHistory} from "vue-router";
import nprogress from "@/utils/nprogress";
import Messager from '@/utils/messager';import useMenu from '@/store/menu'import pinia from '@/store'
import useUser from '@/store/user'
const userStore = useUser(pinia) // 此处不能像在组件里使用userStore一样直接useUser()调用，而是要先引入pinia，再传入。参考： https://blog.csdn.net/qq_21473443/article/details/126405859
console.log('router->userStore',userStore);const menuStore = useMenu(pinia)// 路由信息
const routes = [{path: "/login",name: "login",component:  () => import('@/views/login/index.vue'),},{path: '/',name: 'layout',component: ()=>import('@/layout/index.vue'),children: []}
]const router = createRouter({history: createWebHistory(),routes
});function existRoutePath(path) {let routes = router.getRoutes()let routePathArr = []routes.forEach((route) => {routePathArr.push(route.path)})return routePathArr.indexOf(path)
}router.beforeEach((to,from,next)=>{nprogress.start()// console.log(router.getRoutes(),existRoutePath(to.path),'router hasRoute-3',to);// debuggerlet token = userStore.tokenif(!token) {if(to.path == '/login') {next()} else {next('/login')}} else {if(!menuStore.routesMenusLoaded) {// console.log(router.getRoutes(),existRoutePath(to.name),'router hasRoute-1',to);menuStore.loadRoutesMenus().then(res=>{// console.log(router.getRoutes(),existRoutePath(to.name),'router hasRoute-2',to);next({...to})}).catch(err=>{// 加载出错，跳回到登录页去userStore.clearUserInfo()next('/login')})} else {if(to.path == '/login') {Messager.warn('你已登录!')next('/home')} else {// console.log(router.getRoutes(),existRoutePath(to.name),'router hasRoute-4');next()}}}})router.afterEach((to,from,next)=>{nprogress.done()
})// 导出路由
export default router;

修改menu.js

import { defineStore } from 'pinia'
import {getMenus,getRoutes} from '@/api/loginApi'
import router from '@/router'export default defineStore('menu', {state: ()=> {return {routesMenusLoaded: false, // 路由菜单是否已加载menus: [], // 菜单routes: [] // 路由}},getters: {},actions: {loadRoutesMenus() {return new Promise(async (resolve,reject)=>{try {let menus = await getMenus()let routes = await getRoutes()// 保存路由this.routes = routes// 保存菜单this.menus = menus// 动态加载路由routes.forEach(route=>{router.addRoute('layout', {path: route.path,name: route.name,component: ()=>import(route.component.replace('@',"../")) // 好像直接以@开头,会报错，所以这干脆替换成相对路径吧})})router.addRoute({path:'/:pathMatch(.*)*',name: 'notFound',component: ()=>import('../views/404/NotFound.vue')})console.log(router.getRoutes(),'加载路由 finished');this.routesMenusLoaded = trueresolve()} catch (err) {reject(err)}})}}
})

12.全屏功能

安装screenfull

npm i screenfull -S

使用screenfull

13. 面包屑

我们需要展示当前路由的菜单的面包屑，先约定下数据，路由的name唯一且对应到菜单里的name且唯一，这样当我们切换到某一个路由的时候，就可以根据name到菜单里面递归的找到它所对应的所有父级。

数据

{"errno": 0,"errmsg": "成功","data": [{"path": "/home","name": "home","component": "@/views/Home.vue"},{"path": "/sys/user","name": "user","component": "@/views/sys/user.vue"},{"path": "/sys/role","name": "role","component": "@/views/sys/role.vue"},{"path": "/sys/menu","name": "menu","component": "@/views/sys/menu.vue"},{"path": "/test/test_1","name": "test_1","component": "@/views/test/test_1.vue"},{"path": "/test/test_2/test_2_1","name": "test_2_1","component": "@/views/test/test2/test_2_1.vue"},{"path": "/test/test_2/test_2_2","name": "test_2_2","component": "@/views/test/test2/test_2_2.vue"}]
}

{"errno": 0,"errmsg": "成功","data": [{"id": 1,"parentId": 0,"name": "home","title":"主页","icon":"iconfont icon-home-line","url":"/home","menuType": "C","component":"@/views/Home.vue"},{"id": 2,"parentId": 0,"name": "sys","title":"系统设置","icon":"iconfont icon-shezhi","url":"/sys","menuType": "M","component":"","children": [{"id": 3,"parentId": 2,"name": "user","title":"用户管理","icon":"iconfont icon-yonghuguanli","url":"/sys/user","menuType": "C","component":"@/views/sys/user.vue"},{"id": 4,"parentId": 2,"name": "role","title":"角色管理","icon":"iconfont icon-jiaoseguanli","url":"/sys/role","menuType":"C","component":"@/views/sys/role.vue"},{"id": 5,"parentId": 2,"name": "menu","title":"菜单管理","icon":"iconfont icon-icon_caidanguanli","url":"/sys/menu","menuType":"C","component":"@/views/sys/menu.vue"}]},{"id": 6,"parentId": 0,"name": "test","title":"多级菜单","icon":"iconfont icon-graphcool","url":"/test","component":"","menuType":"M","children": [{"id": 7,"parentId": 6,"name": "test_1","title":"test_1","icon":"iconfont icon-graphcool","url":"/test/test_1","menuType":"C","component":"@/views/test/test_1.vue"},{"id": 8,"parentId": 2,"name": "test_2","title":"test_2","icon":"iconfont icon-graphcool","url":"/test/test_2","menuType":"M","component":"","children":[{"id": 9,"parentId": 8,"name": "test_2_1","title":"test_2_1","icon":"iconfont icon-graphcool","menuType":"C","url":"/test/test_2/test_2_1","component":"@/views/test/test_2_1.vue"},{"id": 10,"parentId": 8,"name": "test_2_2","title":"test_2_2","icon":"iconfont icon-graphcool","menuType":"C","url":"/test/test_2/test_2_2","component":"@/views/test/test_2_2.vue"}]}]}]
}

修改menus.js

根据后台返回的菜单，递归出所有路由对应的带层级的菜单标题，放入路由的meta中

import { defineStore } from 'pinia'
import {getMenus,getRoutes} from '@/api/loginApi'
import router from '@/router'
import { dropdownMenuProps } from 'element-plus'function generateNameMap(menus) {const nameMap = {}menus.forEach(menu => {handleMenu(menu,nameMap,[])})return nameMap
}function handleMenu(menu,nameMap,titleArr) {titleArr.push(menu.title)nameMap[menu.name] = JSON.parse(JSON.stringify(titleArr))if(menu.children && menu.children.length > 0) {menu.children.forEach(menu => {let newTitleArr = JSON.parse(JSON.stringify(titleArr))handleMenu(menu,nameMap,newTitleArr)})}
}export default defineStore('menu', {state: ()=> {return {routesMenusLoaded: false, // 路由菜单是否已加载menus: [], // 菜单routes: [] // 路由}},getters: {},actions: {loadRoutesMenus() {return new Promise(async (resolve,reject)=>{try {let menus = await getMenus()let routes = await getRoutes()// 保存路由this.routes = routes// 保存菜单this.menus = menus// debuggerconst nameMap = generateNameMap(menus)// 动态加载路由routes.forEach(route=>{router.addRoute('layout', {path: route.path,name: route.name,meta: {titleArr: nameMap[route.name]},// 好像直接以@开头,会报错，所以这干脆替换成相对路径吧component: ()=>import(route.component.replace('@',"../")) })})router.addRoute({path:'/:pathMatch(.*)*',name: 'notFound',component: ()=>import('../views/404/NotFound.vue')})console.log(router.getRoutes(),'加载路由 finished');this.routesMenusLoaded = trueresolve()} catch (err) {reject(err)}})},}
})

修改Breadcrumb.vue

监听路由变化，从路由的meta中获取缓存的面包屑数据

14. tagsView

这一步主要实现tagsView功能，tagsView中记录用户访问过的菜单，并且能够根据需要关闭它，但是主页这个tag要一直保留。
我们把tag存放在pinia里面，tagsView组件通过计算属性引用pinia里面的tags，通过监听事件触发方法调用pinia里的方法
里面有个坑：点击关闭按钮的时候，需要阻止事件冒泡，否则，不仅会触发i这个icon的关闭的事件，又会触发div的点击事件，使用@click.stop去绑定

TagsView.vue

TagsView.js

import { defineStore } from 'pinia'export default defineStore('tagsView', {state: ()=> {return {tags: [{title: '主页',name: 'home',path: '/home',isActive: false}],}},getters: {},actions: {doOnrouteChange(route) {debuggerconsole.log('doOnrouteChange->新路由', route.name);let currRouteName = route.namelet tagNameArr = []let flag = falsethis.tags.forEach(tag=>{tag.isActive = falseif(tag.name == currRouteName) {flag = truetag.isActive = true}})       if(!flag) {console.log('原先没有这个路由,现在添加tag', route.name);this.tags.push({title: route.meta.title,name: route.name,path: route.path,isActive: true})}     },closeSpecifiedTag(tag){debuggerlet index = -1;for(let i=0;iif(this.tags[i].name === tag.name) {index = ibreak}}if(index > -1) {this.tags.splice(index,1)}},selectSpecifiedTag(tag) {debuggerthis.tags.forEach(t=>{t.isActive = falseif(t.name == tag.name) {t.isActive = true}})  }}
})

15. vue指令控制权限按钮显示

通过vue的directive指令方式，当用户拥有指定的权限时，才显示按钮

后台返回权限数据

{"errno": 0,"errmsg": "成功","data": {"perms": ["user:list","user:add","user:remove","role:list","role:add","role:remove"]}
}

创建指令文件perms.js

import useMenu from '@/store/menu'
import { toRaw } from '@vue/reactivity'export default {hasPerms: {mounted(el,binding) {const menuStore = useMenu()let perms1 = menuStore.permsconsole.log(el,binding,perms1);let perms2 = toRaw(perms1)let perms3 = JSON.parse(JSON.stringify(perms1))console.log(perms2.perms);console.log(perms3.perms);// 有任一指定的权限, 即可显示指定的dom, 否则移除if(!perms2.perms.some(p=>binding.value.includes(p))) {el.parentNode.removeChild(el)}},}
}

loginApi.js中添加接口

// ...省略
export function getPerms()  {return request({method:'get',url: 'test/getPerms'})
}

修改store/menu.js

把获取权限的部分加进去

import { defineStore } from 'pinia'
import {getMenus,getRoutes,getPerms} from '@/api/loginApi'
import router from '@/router'
import { dropdownMenuProps } from 'element-plus'function generateNameMap(menus) {const nameMap = {}menus.forEach(menu => {handleMenu(menu,nameMap,[])})return nameMap
}function handleMenu(menu,nameMap,titleArr) {titleArr.push(menu.title)nameMap[menu.name] = JSON.parse(JSON.stringify(titleArr))if(menu.children && menu.children.length > 0) {menu.children.forEach(menu => {let newTitleArr = JSON.parse(JSON.stringify(titleArr))handleMenu(menu,nameMap,newTitleArr)})}
}export default defineStore('menu', {state: ()=> {return {routesMenusLoaded: false, // 路由菜单是否已加载menus: [], // 菜单routes: [], // 路由,perms: [], // 权限}},getters: {},actions: {loadRoutesMenus() {return new Promise(async (resolve,reject)=>{try {let menus = await getMenus()let routes = await getRoutes()let perms = await getPerms()// 保存路由this.routes = routes// 保存菜单this.menus = menus// 保存权限this.perms = perms// debuggerconst nameMap = generateNameMap(menus)// 动态加载路由routes.forEach(route=>{router.addRoute('layout', {path: route.path,name: route.name,meta: {titleArr: nameMap[route.name],title: nameMap[route.name][nameMap[route.name].length-1]},// 好像直接以@开头,会报错，所以这干脆替换成相对路径吧component: ()=>import(route.component.replace('@',"../")) })})router.addRoute({path:'/:pathMatch(.*)*',name: 'notFound',component: ()=>import('../views/404/NotFound.vue')})console.log(router.getRoutes(),'加载路由 finished');this.routesMenusLoaded = trueresolve()} catch (err) {reject(err)}})},}
})

User.vue中使用

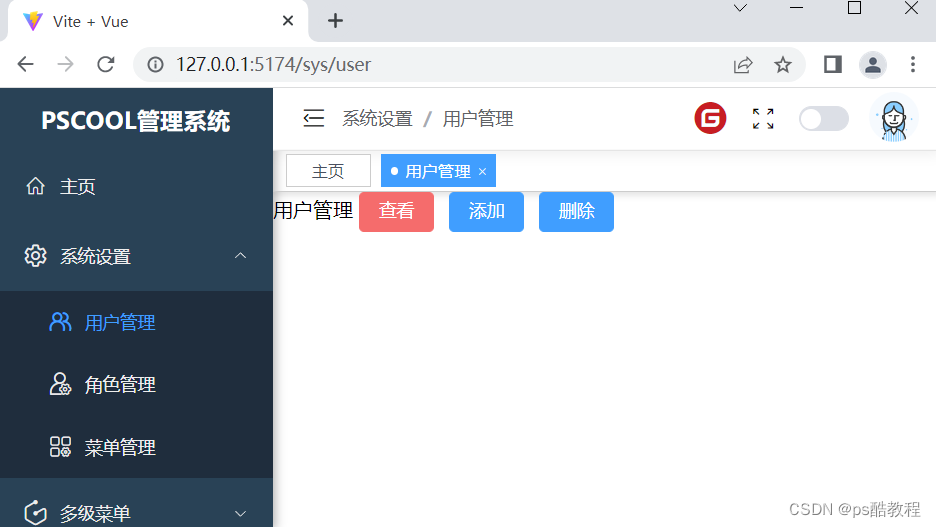

如下效果
